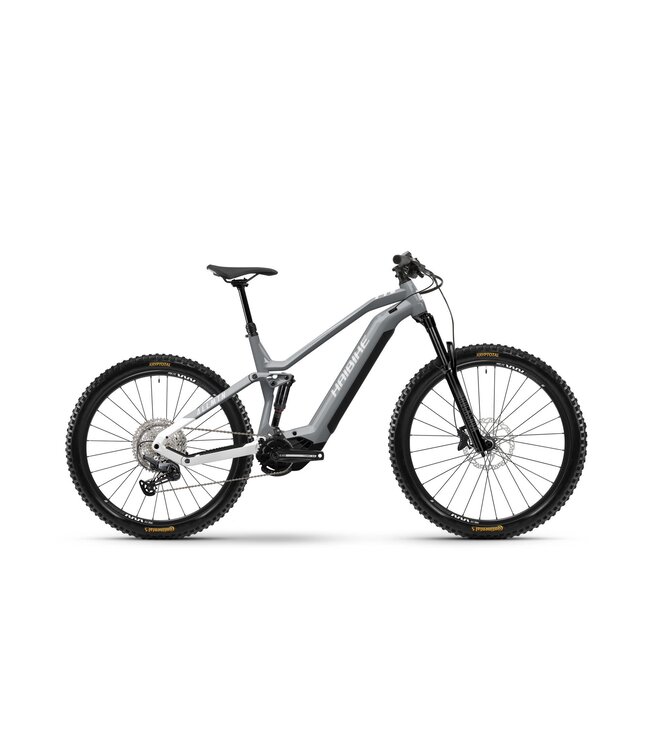

Are you looking for a robust eFully that takes on any terrain? Then our new ALLMTN 3 is the perfect all-rounder for you: With 160 mm travel front and rear, burly 4-piston disc brakes from Shimano and the powerful Yamaha PW-X3 drive, this eMTB takes you smoothly over all trails. Thanks to the mixed wheel sizes of 29" front / 27.5" rear, you will always enjoy perfect traction and master even the steepest uphills and downhills without a problem.

• ENGINE

  Yamaha, PW-X3, 250W, 85 Nm

• DISPLAY

  Yamaha, Side Switch, 1.7" LCD, 7 functions

• BATTERY

  InTube, 720 Wh

• FORK

  RockShox, 35 Gold RL, Air, travel= 160 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost

• DAMPER

  RockShox, Deluxe select, Air, Trunnion Mount

• CRANK ARM

  Haibike Components, The Crank ++, Aluminium

• BRAKE (FRONT)

  Shimano, MT420, 4-piston disc brake

• BRAKE (REAR)

  Shimano, MT420, 4-piston disc brake

• TUBE

  Presta valve

• RIM

  WTB, ST i30 TCS, Double Wall

• CLAMPING RING

  Internal hexagon, 38 mm

• REAR DERAILLEUR

  Shimano, Deore M6100

• SHIFT LEVER

  Shimano, Deore M6100, Trigger switch

• BOTTOM BRACKET

  integrated in the motor

• SPROCKET

  Shimano, M6100, 10 - 51 teeth

• CHAIN

  Shimano, CN-M6100

• CHAINRING

  Steel, 36 teeth

• CHAIN GUIDE

  Nylon directmount

• BRAKE LEVER

  Shimano, MT401, Aluminium,

• BRAKE DISC (FRONT)

  Shimano, RT EM300L, 203 mm

• BRAKE DISC (REAR)

  Shimano, RT30-L, 203 mm

• TYRE

  Maxxis, Minion DHF II, 63-622, 29" x 2.5"

• FRONT WHEEL HUB

  Shimano, MT400-B, Centerlock

• REAR WHEEL HUB

  Shimano, MT410, Centerlock

• SPOKES

  Sapim, Race, Black

• HANDLEBAR

  Haibike Components, TheBar +++, 780 mm

• STEM

  Haibike Components, TheStem ++, A-head, 31.8 mm

• HEADSET

  Acros, BlockLock, Aluminium

• SADDLE

  Selle Royal, Vivo

• SEAT POST

  Haibike Components, Dropper-Post Remote 34.9, Aluminium, Telescope, 34.9 mm

• PEDALS

  Freeridepedal, Aluminium, with Reflector

• PERMITTED TOTAL WEIGHT

  120.0 kg

• GEAR SHIFT

  Shimano, Nexus

• TYRE (REAR)

  Maxxis, Minion DHR II, 66-584, 27.5" x 2.6"

• RIM (REAR)

  WTB, ST i35 TCS, double wall
