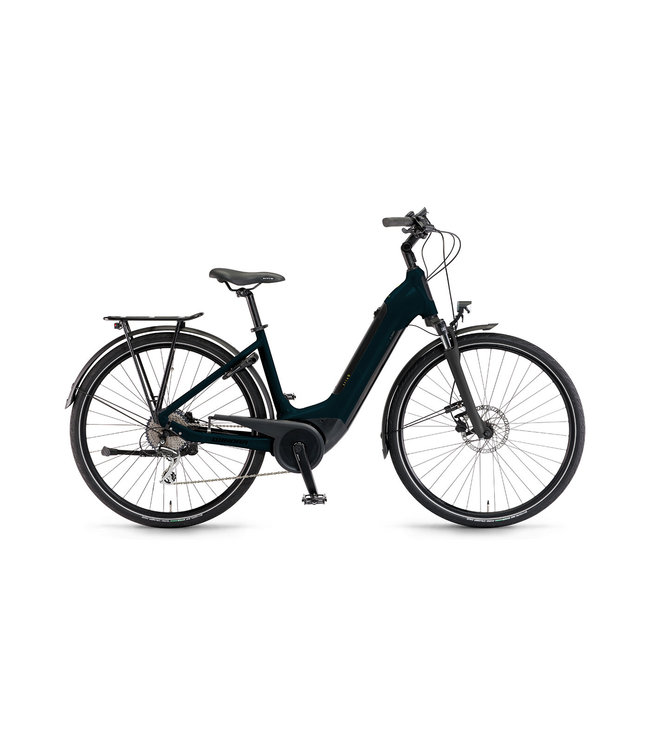

With its high comfort level, the WINORA Tria 8 eBike offers a relaxed experience making riding fun. The step-through frame allows for swift mounting and dismounting even during spontaneous braking manoeuvres, keeping you agile on the road. The battery, integrated into the frame, and the internal cable routing provide a clean look and improved protection. With the Shimano Acera rear derailleur, you climb smoothly even on steeper slopes. Disc brakes allow you to stop swiftly, putting you in control at all times. And if you're planning longer adventures, the powerful Bosch Active Plus mid-motor offers reliable support.

• ENGINE

  Bosch, Active Plus, 250 W, 50 Nm, 25 km/h

• DISPLAY

  Bosch, Intuvia

• BATTERY

  Bosch, PowerTube, 400 Wh

• FRAME FAMILY

  Winora, Aluminium 6061, GCOPD, THT, Aluminium 6061

• FORK

  SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm

• CRANK ARM

  Winora, forged, Aluminium

• BRAKE (FRONT)

  Alhonga, HT474, Hydraulic disc brakes

• BRAKE (REAR)

  Alhonga, HT474, Hydraulic disc brakes

• TUBE

  Dunlop valve

• RIM

  Ryde, Eco21, With Eyelets, Double Wall, Aluminium

• CLAMPING RING

  quick release, Quick release, 34.9 mm

• REAR DERAILLEUR

  Shimano, Acera M360

• SHIFT LEVER

  Shimano, Altus M315, Rapidfire

• BOTTOM BRACKET

  integrated in the motor

• CHAIN GUARD

  SKS, Chainbow-E 38T

• SPROCKET

  SunRace, CSM40, 11 - 34 teeth

• CHAIN

  KMC, X8

• CHAINRING

  Samox, 38 teeth

• BRAKE LEVER

  Alhonga, HT474, Aluminium

• BRAKE DISC (FRONT)

  Alhonga, DXR1806, 180 mm

• BRAKE DISC (REAR)

  Alhonga, DXR1606, 160 mm

• TYRE

  Schwalbe, Road Cruiser, 50-622, 28 x 2.0 inch

• FRONT WHEEL HUB

  alu hub

• REAR WHEEL HUB

  alu hub

• SPOKES

  Stainless spokes

• HANDLEBAR

  Ergobar, oversize, 640 mm

• GRIPS

  XLC, Comfort bo3

• STEM

  aluminium, angle ajustable, A-head, 31.8 mm

• HEADSET

  Feimin, A-Head Tapered, Ball bearing

• SADDLE

  Selle Royal, Wave

• SEAT POST

  XLC, Aluminium, Patent, 31.6 mm

• PEDALS

  VP, E461, Aluminium, with Reflector

• HEADLIGHT

  Herrmans, H-Black MR-GO

• REAR LIGHT

  AXA, Juno Ebike

• DYNAMO

  via system battery

• CARRIER

  system carrier, 25 kg

• FENDERS

  Eurofender, Tempo, Chromoplastics

• STAND

  Ursus, Mooi, Rear stand
